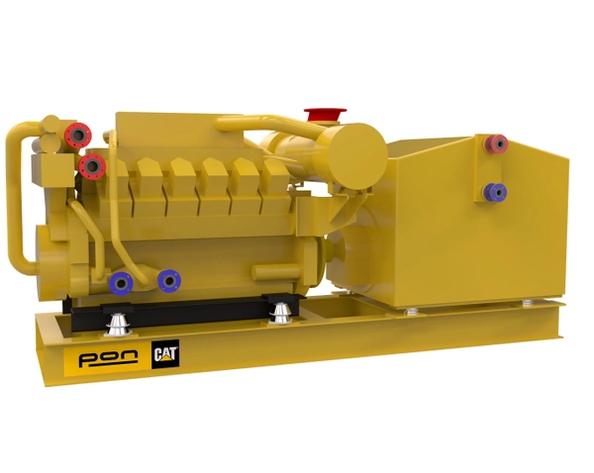

CAT 3512C

Propulsion genset

Power

1700 bKw

Lowest2
Low
Medium
High
Highest

Speed

1800 RPM

Lowest
Low
Medium
High
Highest

Hertz: 60Hz
Cooling: Keels
Mounting: Genflex
Generator: Marelli
Emission: IMO II / IMO III
Read more about CAT SCR

Fuel Consumption

Load [%]	BSFC [g/bkW h]
100	200,3

Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.

Downloads

You need to

or log in to download simplified drawings
and full specifications.

Dimensions & weight

Width: 2132 mm
Height: 2203 mm
Length: 5268 mm
Weight: 15500 kg

- Compact Genset Design using our GenFlex assembly technology, reducing generator wear and structure borne noise.

- Full tailor made possibility, yard supplied generators or other makes possible.

- Possibility for both dual and triple isolation design, for extreme requirements on structure borne noise
